Aluminum trays may look simple, but their quality depends on more than pressing a sheet of foil into shape. In real production, small details such as foil thickness, mold accuracy, feeding stability, and rim forming can decide whether a tray stacks well, resists deformation, or becomes scrap.

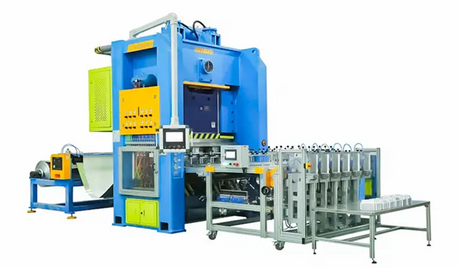

The process usually starts with food-grade aluminum foil entering an Aluminum Foil Container Making Machine, where it is unwound, fed, formed, trimmed, curled, and stacked. Understanding each step helps manufacturers and buyers judge tray quality, production efficiency, and the causes behind common defects.

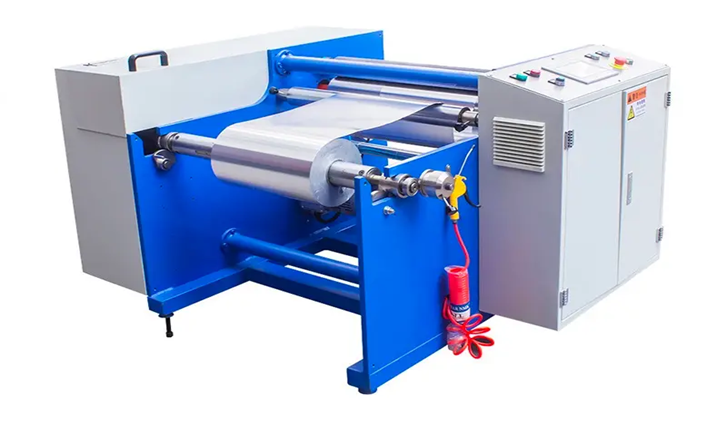

Production starts with a large aluminum foil roll, often called a jumbo roll, placed on a decoiler or uncoiler. The roll must match the tray design in width, thickness, and surface condition before the Aluminum Foil Container Making Machine can run smoothly. If the coil is unstable, poorly aligned, or inconsistent in tension, defects can appear before the foil reaches the mold. Wrinkles, diagonal feeding, edge shifting, and uneven step length often begin at this stage.
A servo feeder then pulls the foil forward by a controlled distance. This movement must match the mold layout, especially when the machine uses a multi-cavity mold to form several trays in one press stroke. Even a small feeding error can move the foil away from the intended forming area. That can create off-center trays, uneven trimming, extra scrap, or containers that fail during stacking.
Stable feeding is especially important when producing lightweight trays. Thin foil is easier to deform, so poor tension control can cause waves or wrinkles that become permanent after pressing. Heavier foil may look more stable, but it can still waste material if the feeding pitch is wrong. A good line does not simply pull foil quickly; it feeds the material accurately enough for repeated forming.
After feeding, the foil enters the press area, where the mold turns a flat sheet into a three-dimensional tray. The mold controls the tray’s depth, corner shape, rim profile, bottom pattern, and overall dimensions. In an Aluminum Foil Container Making Machine, this is the point where design accuracy becomes physical shape. A shallow baking cup, a rectangular takeaway box, and a deeper catering tray all need different tooling conditions.
The press must apply enough force to form the foil without tearing it. If the forming pressure is unstable or the mold is not aligned, the tray may show weak corners, distorted walls, rough edges, or uneven depth. The mold surface also matters because scratches, worn edges, or poor polishing can transfer defects onto the tray. A container used for food service needs both strength and appearance, so forming quality cannot be judged by shape alone.
Once the tray is formed, excess foil is trimmed away, and the rim is curled or flanged. The rim improves handling safety, supports the tray wall, and helps the container stack more consistently. Poor rim formation can make the tray feel weak, prevent lid fit, or create sharp edges that are unacceptable for food packaging.

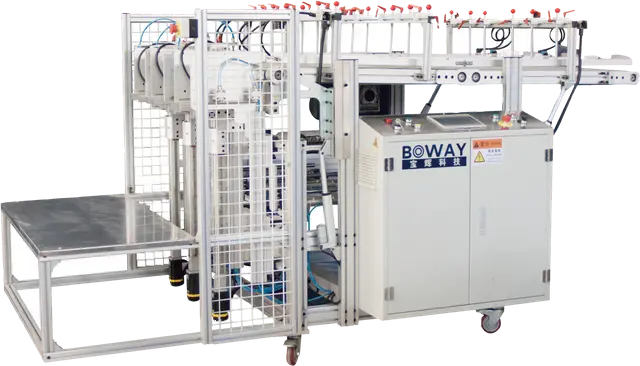

Finished trays then move to an automatic stacker, while leftover foil web is collected as scrap. Scrap collection is not just a housekeeping detail. Clean recovery reduces labor, keeps the work area safer, and makes it easier to track material loss. In a stable Aluminum Foil Container Making Machine line, the final stage should deliver uniform tray stacks without crushing, tilting, or jamming.
Production Step | Main Machine Part | What It Controls | Common Risk |
Foil loading | Decoiler or uncoiler | Roll stability and tension | Wrinkling or coil shifting |
Feeding | Servo feeder | Step length and alignment | Off-center forming or waste |
Pressing | Press and mold | Tray depth and shape | Cracking or uneven forming |
Rim finishing | Cutting and curling structure | Edge strength and safety | Weak rim or sharp edge |
Stacking | Automatic stacker | Finished tray handling | Deformation or jamming |
Scrap recovery | Scrap collector | Waste control | Messy line or hidden loss |
The material used in an Aluminum Foil Container Making Machine is not chosen only by price. Food-grade aluminum foil must be suitable for forming, food contact, and the intended tray application. Common container materials include 8011 aluminum foil and 3003 aluminum foil, depending on the tray shape, strength requirement, and market standard. A light takeaway container may not need the same foil behavior as a deep roasting pan or a semi-rigid catering tray.
Alloy selection affects formability, strength, and resistance to cracking. Temper condition also matters because it describes how soft or hard the foil is after processing. A foil that is too hard may crack at the corners during deep forming. A foil that is too soft may form easily but produce trays that feel weak, deform during stacking, or lose shape during handling.
Thickness adds another layer of decision-making. Thinner foil reduces material cost but can increase pinhole risk, wall weakness, and handling deformation. Thicker foil improves rigidity, yet it may require higher press tonnage and better mold design. The cheapest roll is not always the lowest-cost option if it raises rejection rates or slows production.
Surface quality is just as important as alloy and thickness. Trays used for takeaway meals, baking, catering, and airline food need clean surfaces with controlled oil residue. Rolling oil, dirt, oxidation spots, scratches, and pinholes can reduce appearance and may create problems for food-contact packaging.
Before full production, operators should check the incoming foil rather than assuming every food-grade roll will perform the same. The Aluminum Foil Container Making Machine can only form the material it receives. If the roll is dirty, uneven, or outside thickness tolerance, the machine may amplify those problems instead of correcting them.
Raw material checks before production:
● Confirm alloy grade, such as 8011, 3003, or another suitable container foil grade.
● Check temper condition against the forming depth and tray design.
● Verify thickness tolerance and roll width.
● Inspect the surface for oil stains, scratches, pinholes, and oxidation marks.
● Confirm food-contact documentation where required.
● Run trial forming before mass production.
● Compare formed trays for rim strength, cracking, and stacking behavior.
The mold is one of the most important parts of the Aluminum Foil Container Making Machine because it defines the product, not just the outline. A well-designed mold controls forming depth, corner radius, bottom embossing, rim strength, cavity layout, and tray release. When a multi-cavity mold is used, each press stroke can produce more than one tray, but every cavity must form consistently. If one cavity is slightly misaligned or worn, the line may produce mixed-quality trays in the same cycle.
Mold layout also affects material use. Poor nesting can leave unnecessary leftover web between trays, increasing scrap even when the machine appears to run well. A better mold does not only improve appearance; it can reduce waste, stabilize forming, and make stacking more predictable. For high-volume tray production, mold quality often has a larger long-term effect than a small difference in machine purchase price.
Press tonnage must match foil thickness, tray depth, container size, and cavity number. A small shallow tray may form cleanly with moderate force, while a deeper or larger tray needs stronger and more stable pressing. If tonnage is insufficient, forming may be incomplete, rims may become uneven, and corners may weaken. Excessive force is not a solution either, because it can accelerate mold wear or create unnecessary stress in the foil.
Die clearance is another hidden factor. When clearance is too tight, the foil may tear or create burrs. When it is too loose, the finished edge may look rough or inconsistent. Accurate die clearance helps the Aluminum Foil Container Making Machine produce clean cuts, reliable rims, and stable dimensions over repeated cycles.
Advertised speed is not the same as daily production. A supplier may describe output in pieces per hour, but real output depends on strokes per minute, cavity number, operating hours, uptime, changeover time, and good product rate. A faster machine with frequent jams may produce less usable output than a slightly slower line that runs steadily.
When comparing equipment, buyers should ask how the output figure was calculated. Tray size, foil thickness, mold cavity number, and stacking method all change the result. A serious production estimate should include rejected trays, trial runs, roll changes, mold changeover, and downtime. The best Aluminum Foil Container Making Machine is not simply the fastest one; it is the one that can maintain stable quality at the required speed.
Pro tip: Do not compare two aluminum tray making machines only by pieces per hour. Ask for the tray size, foil thickness, mold cavity number, stacking method, and good product rate behind the number.
Before choosing or running an Aluminum Foil Container Making Machine, buyers should define the main tray they need to produce. Takeaway containers, baking trays, airline meal trays, catering trays, and roasting pans do not place the same demand on foil thickness, mold depth, rim shape, or stacker design. A machine that runs one small tray efficiently may not be suitable for a large, deep, or heavier container.
The target tray should guide the whole line. Foil alloy, temper, thickness, mold cavity number, press tonnage, and stacker compatibility must work together. Buying based only on price or advertised speed can lead to slow startup, excessive scrap, and repeated adjustment. A better approach is to ask whether the machine can produce the intended tray cleanly over repeated runs.
The press is important, but it is only one part of the production system. A practical line includes a decoiler, servo feeder, press, mold, automatic stacker, scrap collector, PLC control system, lubrication system, spare parts, installation support, and operator training. If one part is weak, the entire line can lose stability.
Buyers should also check after-sales support. Mold adjustment, feeder calibration, sensor replacement, and stacker troubleshooting often decide how quickly production becomes stable. A reliable Aluminum Foil Container Making Machine supplier should be able to explain not only machine speed, but also setup conditions, spare parts, training, and quality control.
Inspection Point | Why It Matters |
Target tray size and depth | Confirms whether the machine and mold fit the product |
Foil thickness and temper | Affects forming, strength, and cracking risk |
Mold cavity number | Changes output per stroke and press demand |
Press tonnage | Supports stable forming of deeper or thicker trays |
Feeder accuracy | Reduces misalignment and material waste |
Stacker compatibility | Prevents tray deformation and jamming |
Scrap collection method | Keeps production cleaner and tracks material loss |
Spare parts and support | Reduces downtime after installation |
Aluminum trays are made through a controlled process of feeding, forming, trimming, curling, stacking, and scrap collection. Each step affects the final result, from tray strength and rim quality to stacking stability and material waste. A reliable Aluminum Foil Container Making Machine should therefore be judged by consistent output, not only by speed.
For manufacturers looking to improve tray quality and production efficiency, BOWAY provides aluminum foil container making equipment designed to support stable forming, accurate feeding, and practical production needs. The right machine setup helps reduce avoidable defects, control scrap, and keep food-packaging production more consistent over repeated runs.
A: Aluminum trays are usually made by feeding food-grade aluminum foil from a roll into a press, where a mold forms, trims, curls, and stacks the finished containers.
A: An Aluminum Foil Container Making Machine unwinds foil, feeds it into a press, shapes it with a mold, trims the edge, curls the rim, and stacks the trays.
A: Most aluminum trays use food-grade aluminum foil, often in alloys such as 8011 or 3003, depending on strength, formability, thickness, and food packaging requirements.
A: Cracking or wrinkling usually comes from unstable feeding, poor foil tension, unsuitable temper, incorrect thickness, worn molds, or die clearance that does not match the tray design.
A: Food-grade aluminum trays are generally suitable for food packaging when the material, surface cleanliness, lubricant control, and production process meet relevant food-contact requirements.
A: Real output depends on press speed, mold cavity number, foil thickness, uptime, stacker stability, changeover time, and the percentage of trays that pass quality checks.
