Aluminium foil is a ubiquitous material in packaging, food service, and industrial applications, yet the journey from raw aluminium to thin, flexible sheets involves a highly controlled process. Manufacturers and engineers often face challenges in understanding how alloy selection, temper, and rolling techniques impact foil performance and consistency. Mastering these variables is essential for producing high-quality foil that meets dimensional tolerances, surface standards, and food-contact safety requirements. Exploring the role of the Aluminum Foil Machine helps clarify how each stage—from casting and rolling to finishing and container forming—contributes to reliable, defect-free production.
Aluminium foil production starts with choosing a rollable alloy, not simply using any aluminium. Common options include 8011 and 3003. Alloy 8011 is often used for food packaging, household foil, pharmaceutical foil, and container stock because it balances formability, barrier performance, and process stability. Alloy 3003 is preferred when the final product needs more strength or stiffness, such as trays, lids, and shaped containers.
Temper also affects production. Soft O temper bends and forms easily, while H22 or H24 offers more hardness and shape retention. Two rolls with the same thickness may behave differently on an Aluminum Foil Machine if their elongation, tensile strength, or temper does not match the process.
Before rolling, aluminium is melted and adjusted to the required composition. Primary aluminium, scrap, and alloying elements may be used, but contamination must be controlled because inclusions can later cause pinholes, streaks, or weak spots. Degassing, filtering, and temperature control help remove hydrogen, oxides, and unwanted particles.
The molten metal is then cast into slabs, strips, or coils. Slab casting is followed by hot rolling, while continuous casting can reduce some intermediate steps. In both routes, grain structure, surface condition, and internal cleanliness matter because poor casting quality cannot be fully corrected later.
Before heavy reduction, the cast material is cleaned, scalped, or surface-treated to remove oxides and defects. Preheating improves rollability and helps create a more uniform structure. Lubrication is also prepared because rolling oil affects surface finish, heat control, and strip movement.
This stage reduces later production risks. Dirt, scale, uneven edges, or trapped particles can damage rolls and create repeated foil defects. For thin foil, a small coil-stage flaw may become a serious issue after multiple rolling passes.
Rolling is the core stage of aluminium foil manufacturing. The metal passes between rotating rolls that compress it to a thinner gauge while increasing its length. This reduction happens in stages because aluminium cannot be taken from thick stock to ultra-thin foil in one pass without creating excessive stress, heat, surface damage, or strip breakage. The process usually combines hot rolling, cold rolling, annealing, and inspection between key steps.
An Aluminum Foil Machine used in rolling must balance several variables at the same time:
● Rolling force
● Strip speed
● Roll gap
● Lubrication
● Temperature
● Crown and flatness control
● Surface cleanliness
● Thickness consistency
If the rolling force is too aggressive, the strip may crack or develop surface defects. If the reduction is too light, production becomes inefficient and may require too many passes. In high-volume production, stable rolling performance matters more than producing one successful sample coil.
Hot rolling reduces the cast aluminium to a thinner, more manageable strip while the metal is still warm enough to deform efficiently. This stage improves thickness uniformity and begins shaping the internal grain structure. The goal is not to create final foil immediately, but to prepare a stable intermediate coil that can survive further reduction during cold rolling.
Rolling temperature, mill speed, roll pressure, and lubrication must work together. Excessive heat can damage surface quality, while insufficient temperature may increase rolling load and make reduction more difficult. The roll surface also matters because it influences the finish transferred to the aluminium. A rough or damaged roll can leave marks that remain visible after later processing.
Cold rolling takes the strip closer to final foil thickness. At this stage, the metal is rolled at lower temperatures, which improves dimensional accuracy and surface finish. Each pass reduces thickness further, but it also work-hardens the aluminium. As hardness increases, the foil may become less flexible and more prone to cracking if reduction continues without heat treatment.
Annealing restores ductility by heating the foil or intermediate coil under controlled conditions. The process can be summarized in key steps:
1. Cold Rolling Passes: Reduce foil thickness incrementally while work-hardening the metal.
2. Batch Annealing: Heat coils in a furnace for a longer period to restore flexibility for soft applications.
3. Continuous Annealing: Pass foil through controlled heating zones to achieve specific mechanical properties efficiently.
4. Surface and Oil Management: Remove residual rolling oil and maintain surface cleanliness to prevent odor, staining, or adhesion issues.
5. Temper Adjustment: Apply appropriate temper (soft O or harder H22/H24) depending on end-use requirements, balancing flexibility and stiffness.
This ordered approach ensures foil maintains consistent thickness, tensile strength, and elongation suitable for subsequent converting or container forming.
After rolling and annealing, aluminium foil is rarely ready for final use in its full master coil form. Converting operations turn large coils into usable products for packaging plants, foodservice suppliers, container manufacturers, pharmaceutical converters, and industrial users. These operations may include slitting, rewinding, embossing, coating, printing, laminating, or packing. The exact finishing route depends on whether the foil will become a household roll, a food tray, a yogurt lid, a blister pack, or a heat-seal structure.
This stage is where a broad term like Aluminum Foil Machine can refer to several different machines. A rewinding machine makes smaller rolls from jumbo coils. A slitting machine cuts the foil to target widths. An embossing machine adds surface patterns. A coating or laminating line applies functional layers. Buyers should be careful not to treat these machines as interchangeable because each one solves a different production problem.
Slitting divides wide foil into narrower rolls with accurate width and clean edges. The blade condition, knife clearance, web tension, and roll hardness all affect the final result. Poor slitting can create burrs, dust, edge waves, telescoping rolls, or frequent web breaks during customer use. These problems may not look serious in the factory, but they can cause major disruption on high-speed packaging lines.
Rewinding controls the final roll length, diameter, core tightness, and winding tension. If tension is too high, thin foil can stretch, wrinkle, or become difficult to unwind. If tension is too low, rolls may collapse or shift during transport. A stable Aluminum Foil Machine for rewinding must manage acceleration, deceleration, cutting, and roll changeover without damaging the foil surface.
Embossing presses a pattern into the foil surface. In household foil, this can improve appearance and handling. In container stock, embossing may increase perceived stiffness, reduce sticking, or support forming performance depending on the pattern and material thickness. The pattern must be controlled carefully because excessive embossing can thin local areas and increase the risk of cracking or pinholes.
For manufacturers, embossing should not be treated as decoration only. Pattern depth, roll pressure, foil temper, and line speed must match the end use. A shallow pattern may add little value, while an aggressive pattern can weaken the sheet. When the foil will later be formed into containers, testing should confirm that embossing does not interfere with feeding, pressing, or stacking.
Foil type | Typical alloy or temper | Common use | Production concern |
Soft packaging foil | 8011-O | Wrapping, sealing, food packaging | Pinhole control and cleanliness |
Container stock | 3003 or 8011, H temper | Trays, pans, food containers | Formability and stiffness |
Household foil roll | 8011-O | Kitchen and catering rolls | Rewinding tension and roll finish |
Embossed foil | Varies by use | Decorative or functional surface | Pattern depth and local thinning |
This kind of table helps buyers connect foil specification with machine performance. Thickness alone does not explain whether the product will wrap smoothly, form cleanly, or run at speed. Alloy, temper, surface condition, and converting method all affect the final result.

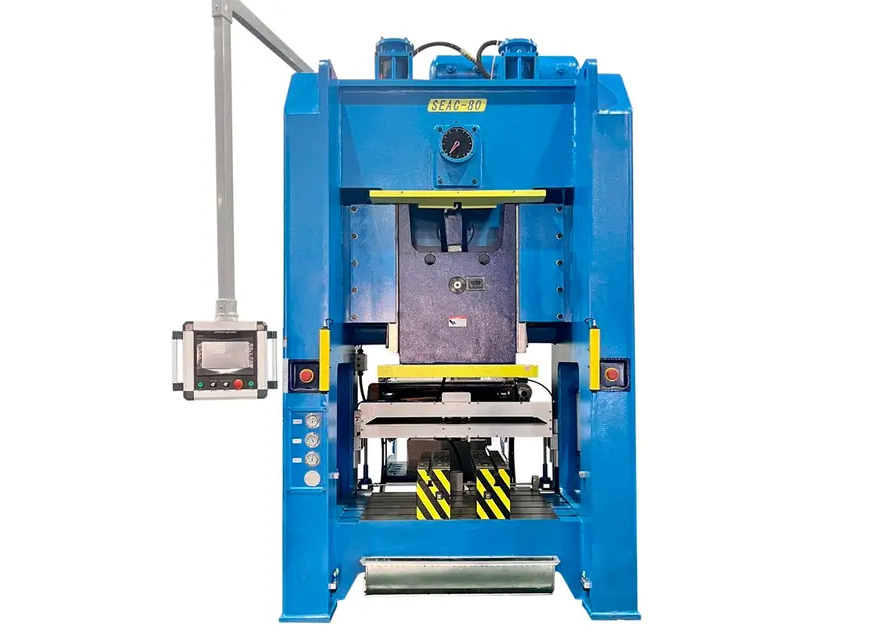

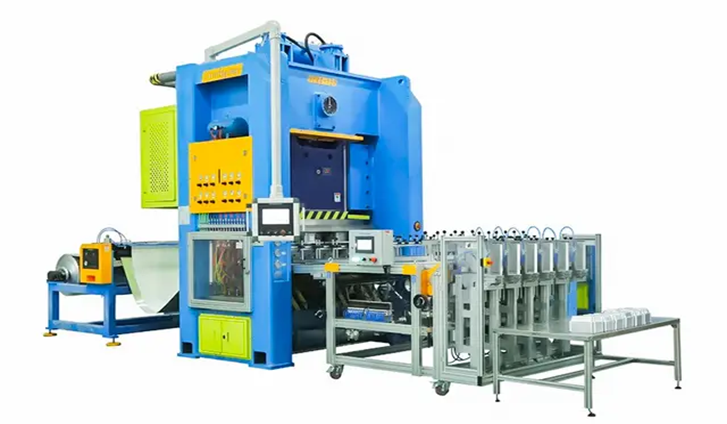

Some aluminium foil continues beyond rolling and converting into container production. In this route, container stock is fed into a press line that forms trays, pans, dishes, lids, or foodservice containers. The production line usually includes a decoiler, feeder, press, mould, scrap collection system, automatic stacker, and packaging station. This is a different manufacturing goal from making plain foil rolls, but it still depends on the same upstream foil quality.
An Aluminum Foil Machine for container production must handle thin metal at speed without tearing it, wrinkling it, or losing dimensional accuracy. Material choice becomes especially important here. Foil that is too soft may deform after forming, while foil that is too hard may crack around corners, ribs, or rolled edges. The mould design, press stroke, feeding accuracy, and lubrication all affect the final container.
The decoiler unwinds the foil coil, while the feeder advances it into the mould at a controlled pitch. Servo feeding is often preferred when accurate positioning and repeatability are required. Pneumatic, hydraulic, or servo-driven presses can be used depending on container size, speed, forming depth, and production budget. Each press type has trade-offs in maintenance, noise, control, and energy use.
Mould design is the most practical factor buyers often underestimate. A multi-cavity mould can increase output, but only if the press force, feeding system, and stacker can support it. Deep containers need enough elongation and suitable corner radii to avoid tearing. If the mould clearance is wrong, the result may be burrs, edge cracks, poor rim formation, or high scrap rate.
After forming, finished containers must be separated, stacked, counted, and packed without deformation. Automatic stackers reduce labour and improve consistency, but they must be synchronized with press speed. If stacking is unstable, containers may tilt, jam, or become scratched before packaging.
Scrap handling also affects efficiency. Trimmed foil skeletons should be collected safely and kept clean enough for recycling value. Inspection at this stage focuses on container shape, rim quality, pinholes, wrinkles, oil marks, and stacking height. A well-matched Aluminum Foil Machine line reduces waste not by speed alone, but by keeping feeding, pressing, moulding, and stacking stable as one system.
Quality assurance starts before the final roll or container is packed. Aluminium foil is used in packaging, food contact, and industrial applications, so inspection must cover both performance and safety. Key control points include thickness uniformity, surface cleanliness, pinhole density, tensile strength, elongation, width accuracy, edge quality, and roll condition. For foil containers, factories also check rim strength, forming depth, stacking stability, and resistance to cracking.
A reliable factory should not depend only on final inspection. Process data from each Aluminum Foil Machine helps identify problems before they become customer complaints. Repeated pinholes may indicate raw material inclusions, dirty rolls, excessive reduction, or forming stress. Wrinkles may come from unstable tension, poor winding, feeder misalignment, or unsuitable temper. Finding the root cause is more useful than simply rejecting defective rolls.
Inspection methods depend on the product. Thin packaging foil may require pinhole detection, thickness measurement, tensile and elongation tests, and surface checks for scratches, oil stains, dents, black spots, or roll marks. Sampling should also reflect real production risk, not just the outer layer of a coil. Reports should record batch number, coil identity, alloy, temper, machine settings, and operator information so problems can be traced accurately.
Food-grade foil and containers often require additional documents, such as FDA-related records, EU 1935/2004 compliance, LFGB testing, SGS reports, migration test results, or declarations of compliance. ISO 9001 supports quality management, while ISO 22000 or HACCP may apply when food safety control is involved. These certificates do not replace good production control, but they show that the manufacturer can connect Aluminum Foil Machine capability with market and safety requirements.
Understanding the steps involved in aluminium foil production—from alloy selection and tempering to rolling, annealing, and finishing—clarifies how quality, flexibility, and consistency are achieved. Each stage in the process plays a critical role, and the right Aluminum Foil Machine ensures precise control over thickness, surface integrity, and tension, reducing defects and waste.
BOWAY’s equipment supports these production goals by integrating controlled rolling, slitting, and container-forming capabilities, helping manufacturers maintain consistent output and meet stringent quality standards. By aligning machine performance with material properties and process requirements, operators can enhance efficiency, improve product reliability, and better serve end-use applications across packaging and industrial sectors.
A: Most aluminium foil is produced from alloys such as 8011 and 3003. These materials provide different balances of flexibility, strength, corrosion resistance, and formability depending on the final application.
A: Industrial rolling mills can reduce aluminium foil to extremely thin gauges, often below 0.01 mm. Thickness depends on the intended use, required strength, and barrier performance.
A: An Aluminum Foil Machine helps process aluminium through rolling, slitting, rewinding, embossing, or container forming. Different machines handle different stages of production and finishing.
A: Annealing restores flexibility after cold rolling. Without controlled heat treatment, the foil may become brittle, crack during forming, or perform poorly in packaging and container applications.
A: Manufacturers use light inspection systems, surface checks, and sampling tests to identify pinholes. Detecting these defects is important for packaging products that require strong barrier protection.
A: Container quality depends on foil temper, mould design, feeding accuracy, and press stability. Incorrect material properties or poor machine setup can lead to wrinkles, cracks, or uneven edges.
