Purchasing a case packer represents a major capital expenditure for any manufacturing facility. Plant managers often fixate on maximum theoretical speeds to justify this massive investment upfront. However, this narrow focus routinely backfires once machines reach the production floor. Buyers constantly face a tough dilemma today. They must balance aggressive throughput demands against the harsh physical realities of imperfect packaging materials. Ignoring natural material variability inevitably creates catastrophic bottlenecks when fast machines attempt to process inconsistent corrugated blanks. Our goal is to fix this operational disconnect. We aim to provide operations and procurement teams with a highly concrete, actionable framework. You will discover exactly how to evaluate complex equipment specifications properly. We will show you how to prioritize Overall Equipment Effectiveness (OEE) over misleading peak metrics. Finally, you will learn proven strategies to mitigate costly integration risks before signing a purchase order.
Engineers often evaluate packaging equipment using theoretical maximums. Manufacturers list a specific cycle rate on their brochures. This number represents the dry-running capacity of the mechanism itself. It assumes perfect conditions, zero material flaws, and uninterrupted product flow. Operational speed tells a very different story. It measures sustained throughput using real products packed into real cartons. When evaluating options, you must scrutinize case packing machine speed metrics carefully. Dry-running speeds mean nothing if the machine jams constantly on the production floor.
You cannot look at the packing mechanism in isolation. Upstream product handling dictates your true production ceiling. Infeed systems must accumulate, orient, and group products flawlessly. If a robotic arm packs 60 cases per minute, but the upstream diverter only groups 40 case loads per minute, your maximum speed is 40. Upstream accumulation areas often create the actual bottleneck. You need seamless synchronization between the primary product delivery and the case erecting station.
Plant managers must shift their focus away from raw cases per minute (CPM). Overall Equipment Effectiveness (OEE) serves as the ultimate metric of success. Consider a simple mathematical reality. A machine running at 95% efficiency at 30 CPM consistently yields more finished goods than a machine running at 70% efficiency at 40 CPM. The slower, highly reliable machine generates predictable output. It reduces operator fatigue and prevents costly downstream starvation.
You should establish realistic speed baselines based on machine architecture. Different mechanical designs inherently support different production rates. Continuous motion machines handle much higher speeds than intermittent motion systems. Top-load, side-load, and wrap-around systems all feature distinct operational limits.
| Architecture Type | Typical Speed Range (CPM) | Best Suited For | Motion Type |
|---|---|---|---|
| Intermittent Side-Load | 15 - 35 | Cartons, rigid boxes, blocked products | Start-and-stop |
| Robotic Top-Load | 20 - 50 | Flexible pouches, delicate items, bottles | Multi-axis picking |
| Continuous Wrap-Around | 40 - 75+ | High-volume cans, jars, solid blocks | Continuous flow |
Corrugated cardboard behaves like a living material. It reacts strongly to environmental changes within your facility. Humidity, temperature fluctuations, and improper warehouse storage conditions cause board blanks to warp. This warping wreaks havoc on automated equipment. A warped board resists the vacuum cups designed to pull it from the magazine. It catches on metal guides during the erecting phase. Running warped material through a fast erecting station guarantees frequent jams and missed picks.
The structural design of the board also dictates performance. Different flute profiles, such as B, C, and E flutes, respond differently to mechanical stress. E-flute offers a smoother surface, allowing vacuum cups to establish strong seals. Thicker C-flute boards require more aggressive mechanical plows to fold the flaps properly. High recycled content further complicates matters. Recycled fibers are shorter and weaker. They shed dust into pneumatic systems and tear easily under mechanical tension. Integrating a high-speed case packing machine demands strict corrugated quality control.
Dimensional tolerances present another massive hurdle. Box manufacturers always have a slight margin of error in their cutting and gluing processes. However, automated case packers operate with zero tolerance for severe variances. A fraction-of-an-inch variation in the manufacturer's joint causes boxes to erect out-of-square. Misaligned score lines force mechanical arms to apply uneven pressure. At slow speeds, a machine might force an imperfect box through the system. At high speeds, these minor variations cause catastrophic jams.
Your chosen sealing method drastically impacts machine footprint and speed. You typically choose between hot melt glue and pressure-sensitive tape. Hot melt adhesive requires specific, mathematically defined compression times. The glue must cure before the flaps pop open. If you run the machine faster, the case spends less time in the compression section. To maintain high speeds with hot melt, you must physically lengthen the compression section of the machine. Tape sealing avoids this compression time issue, but tape heads require frequent roll changes, affecting OEE.
Every packaging engineer faces a core business decision. You must choose between dedicated production lines and multi-format flexibility. Dedicated machines run a single SKU. They feature fixed mechanical guides, optimized servo profiles, and rigid frames. They offer peak throughput and incredible reliability. Multi-format machines handle various box sizes and product configurations. They provide vital SKU flexibility, but they operate at lower baseline speeds. Extra moving parts and adjustable rails inherently reduce the mechanical rigidity required for maximum velocity.

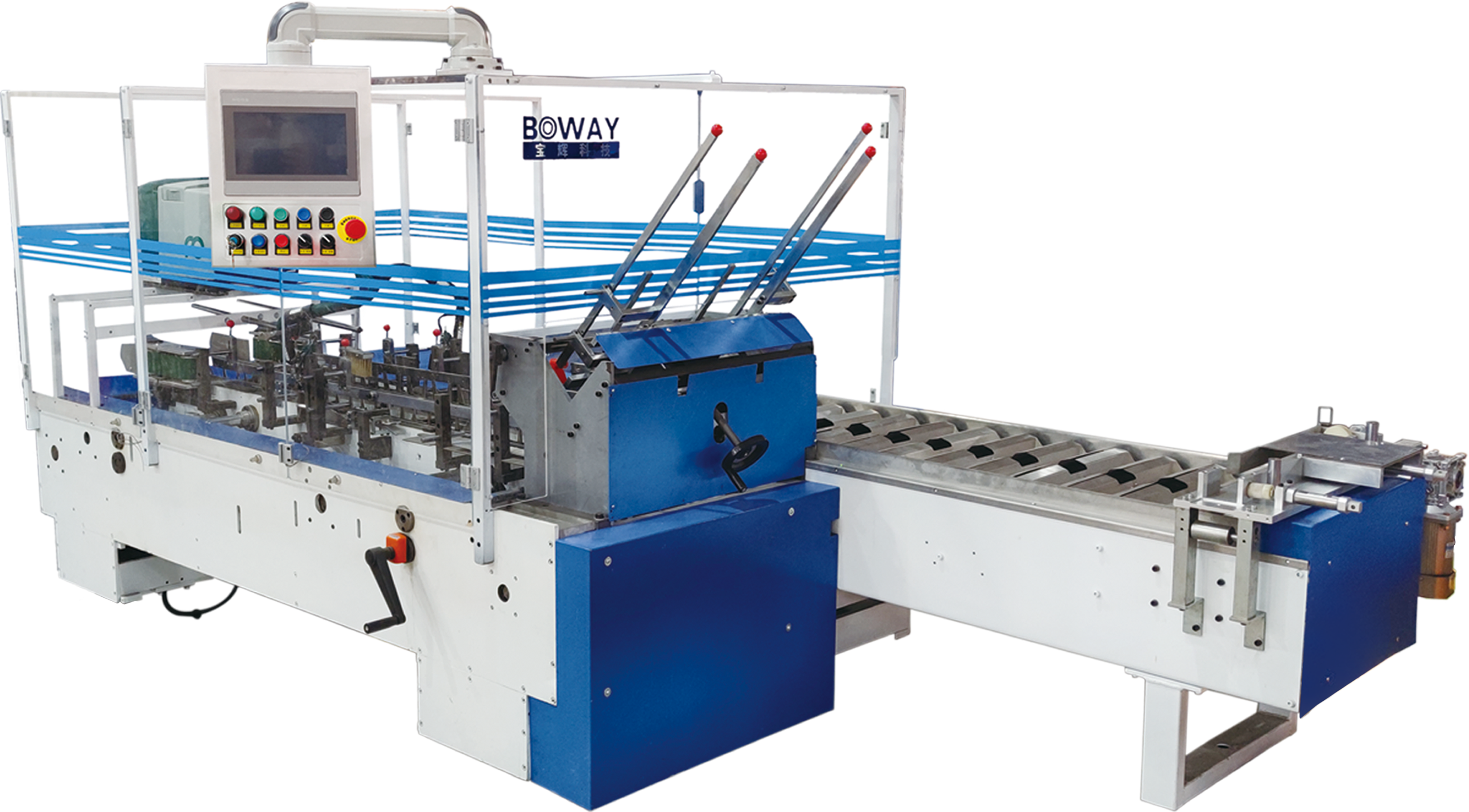

You must carefully analyze the economics of changeovers. When operators stop a machine to adjust rails and swap vacuum tooling, you lose profitable production time. Frequent changeovers destroy shift OEE. Modern manufacturers combat this downtime by demanding tool-less changeovers. Operators use quick-release handles instead of wrenches. Advanced systems utilize servo-driven adjustments. A single button press repositions guides automatically. Upgrading to a versatile high-speed case packing machine equipped with servo adjustments guarantees precise repeatability between batches.
Many procurement teams fall into the "broad spec" trap. They write RFQs demanding a single piece of equipment to handle massive, contradictory product ranges. They want one machine to pack tiny retail-ready displays and giant bulk shipping cases. Forcing this extreme spectrum compromises the machine design. It requires complex telescopic mechanisms. These mechanisms introduce vibration and increase fault rates. You achieve better overall efficiency by purchasing two optimized machines rather than one heavily compromised hybrid.
Minor carton imperfections become major financial drains at high speeds. A slightly warped flap catches a sensor, triggering an immediate fault. These micro-stops might only last 30 seconds each, but they accumulate rapidly. Fifty micro-stops over an eight-hour shift can wipe out your profitability margin. Operators grow frustrated constantly clearing minor jams. They often reduce the machine speed manually to stabilize the line, entirely defeating the purpose of buying high-speed equipment.
Incompatible dimensions lead directly to severe product shrinkage. When an out-of-square box enters the loading station, the opening is physically smaller than expected. The loading ram forces the primary products into this restricted space anyway. This brute-force loading causes instant crush damage. Primary pouches burst, cartons crease, and glass bottles shatter inside the machine. You lose both the expensive primary product and the corrugated materials.
Pushing poor-quality corrugated through sensitive machines accelerates mechanical wear. Vacuum generators work overtime trying to seal against porous, dusty recycled boards. Pneumatic cylinders endure excessive resistance when folding stiff, incorrectly scored flaps. Servo motors draw more current to push warped boxes through narrow guide rails. This constant overexertion leads to premature component failure. Maintenance overhead skyrockets as you replace expensive parts far ahead of their intended lifecycle.
Successful procurement starts with a rigorous internal baseline document. You must define success criteria clearly before contacting any Original Equipment Manufacturer (OEM). Do not just list a target CPM. You need to outline acceptable waste percentages per shift. Document your absolute minimum acceptable OEE target. Define exactly how many changeovers you expect to perform daily. Clear internal benchmarks prevent vendors from selling you features you do not need.
When auditing vendors, interrogate their carton feeding technology specifically. The magazine is the most critical component of the entire machine. Ask if they use active or passive magazine feeds. Active systems use driven belts to push the stack forward smoothly. Passive systems rely on gravity, which fails when handling warped boards. Demand positive carton control throughout the erecting process. The machine should never release its grip on a carton from the moment it leaves the magazine until it is fully sealed.
A strict Factory Acceptance Test (FAT) protocol protects your investment. Never allow the OEM to test the machine using perfect, pristine sample boards provided by their own local supplier. You must ship your exact corrugated grades to their testing facility. Supply materials from the exact vendors you use in daily operations.
If the machine struggles to handle your worst-case acceptable blanks during the FAT, it will fail miserably in your actual production environment.
True production speed relies entirely on carton consistency. A machine can only run as fast as your corrugated board allows. Theoretical cycle rates mean nothing if your board warps, dusts, or arrives with loose dimensional tolerances. Prioritizing OEE ensures you get consistent, predictable output rather than chaotic, jam-filled shifts.
Successful deployment demands deep alignment across multiple departments. Procurement teams must look beyond raw capital costs. Packaging engineers must design robust cartons that withstand automated handling. Operations teams must enforce strict storage and QA protocols for incoming materials.
Take immediate action before sending out your next equipment RFQ. Audit your current corrugated quality on the floor today. Measure the actual dimensional variances of your existing box supply. Map out the exact dimensions of every SKU you intend to run. Presenting OEMs with this grounded, realistic data ensures you purchase a machine capable of delivering true operational success.
A: Standard intermittent motion machines typically operate between 10 and 25 cases per minute (CPM). They use start-and-stop mechanisms ideal for careful product handling. High-speed systems utilize continuous motion technology, such as wrap-around case packers. These machines easily achieve 40 to 75+ CPM because the product and carton never stop moving during the erecting and sealing phases.
A: Warped boards prevent vacuum cups from achieving a tight seal, causing dropped blanks. Boards with heavy recycled content are porous and weak, tearing easily under mechanical stress. Poor score lines force boxes to erect out-of-square, triggering sensor faults, mechanical jams, and prolonged downtime.
A: While technically possible, extreme size discrepancies require complex, multi-axis changeover parts. This broad flexibility reduces overall machine rigidity and lowers the maximum operating speed. It significantly increases changeover downtime, lowering your OEE. Buying dedicated machines for extreme size differences is usually more efficient.
A: Industry-standard benchmarks suggest targeting 80% to 85% OEE for complex automated packaging lines. Factors dragging this number down include frequent SKU changeovers, minor jams from inconsistent corrugated materials, operator delays, and upstream product starvation.
